Versatile Rental Cabinet
TF SERIES
TF Series Key Features
  • Creative splicing - One cabinet for all applications
  • Power box easy assembly & disassembly
  • Curveable-High precision curved lock supports 0°,±3°,±6°,±9°
  • Fast installation
  • Easy maintenance-front and rear modular service
  • Automatic corner protection

Curved installation
Cube splicing

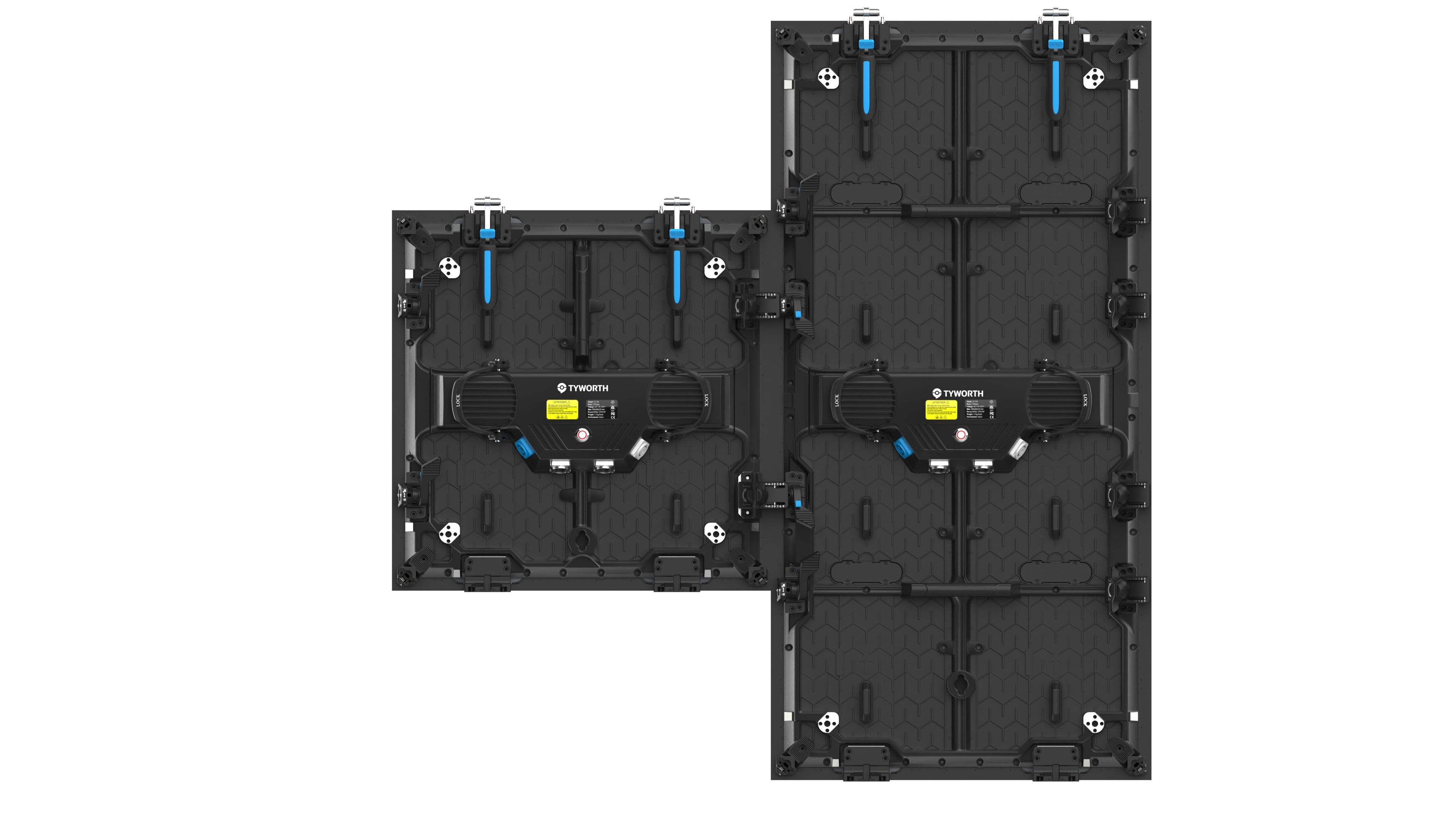

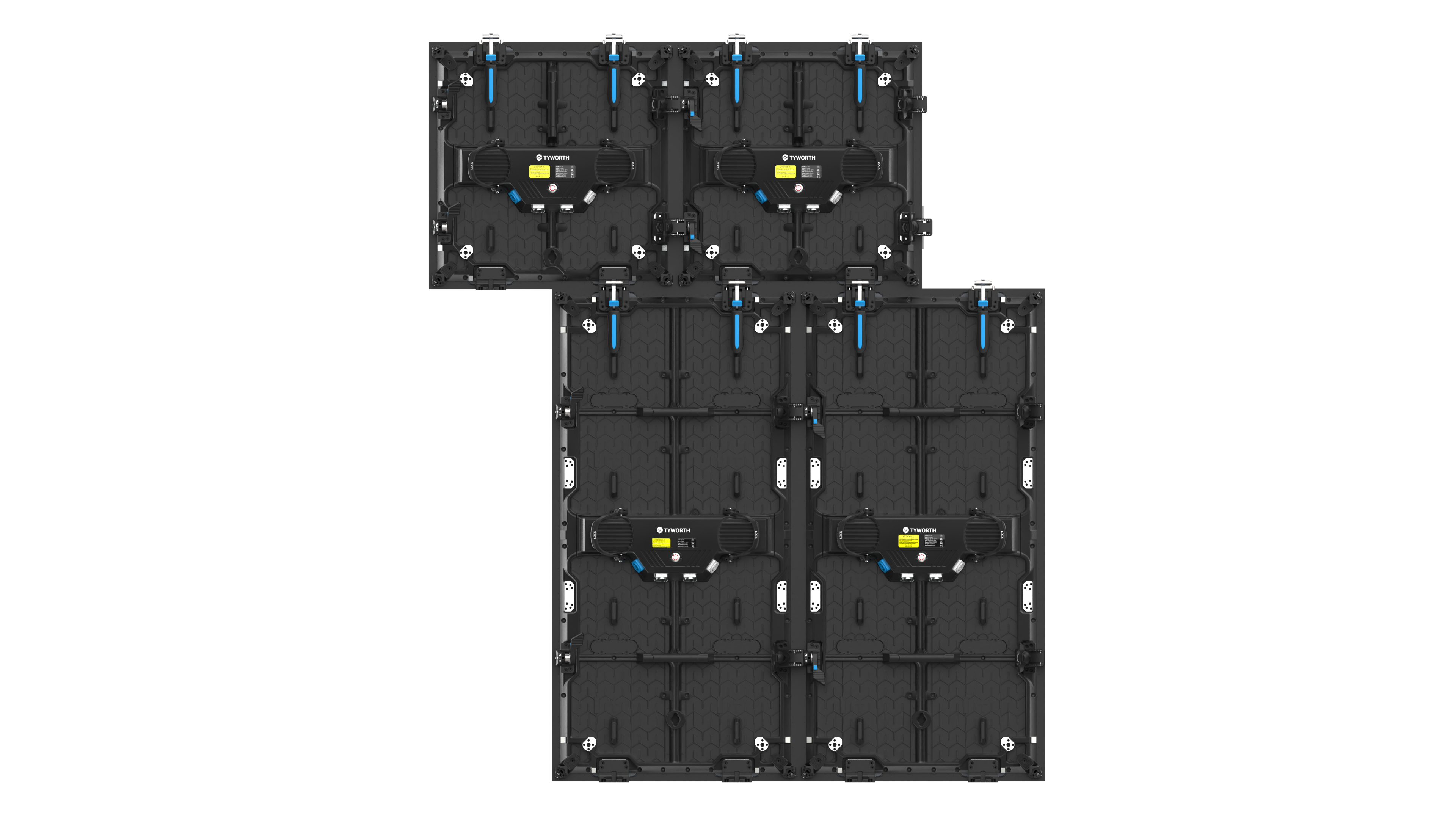

Dislocation splicing (right & left)
Dislocation splicing (up & down)

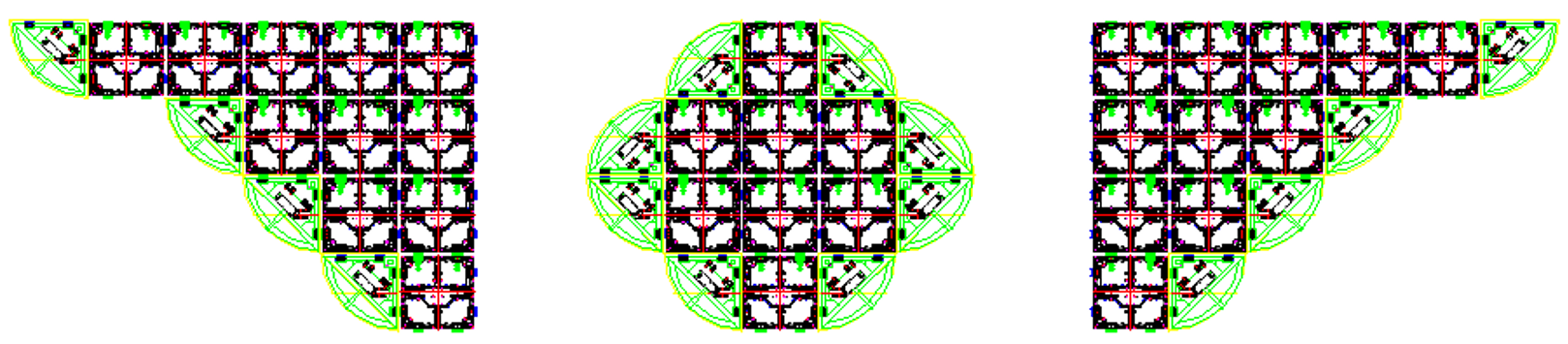

Versatile Application

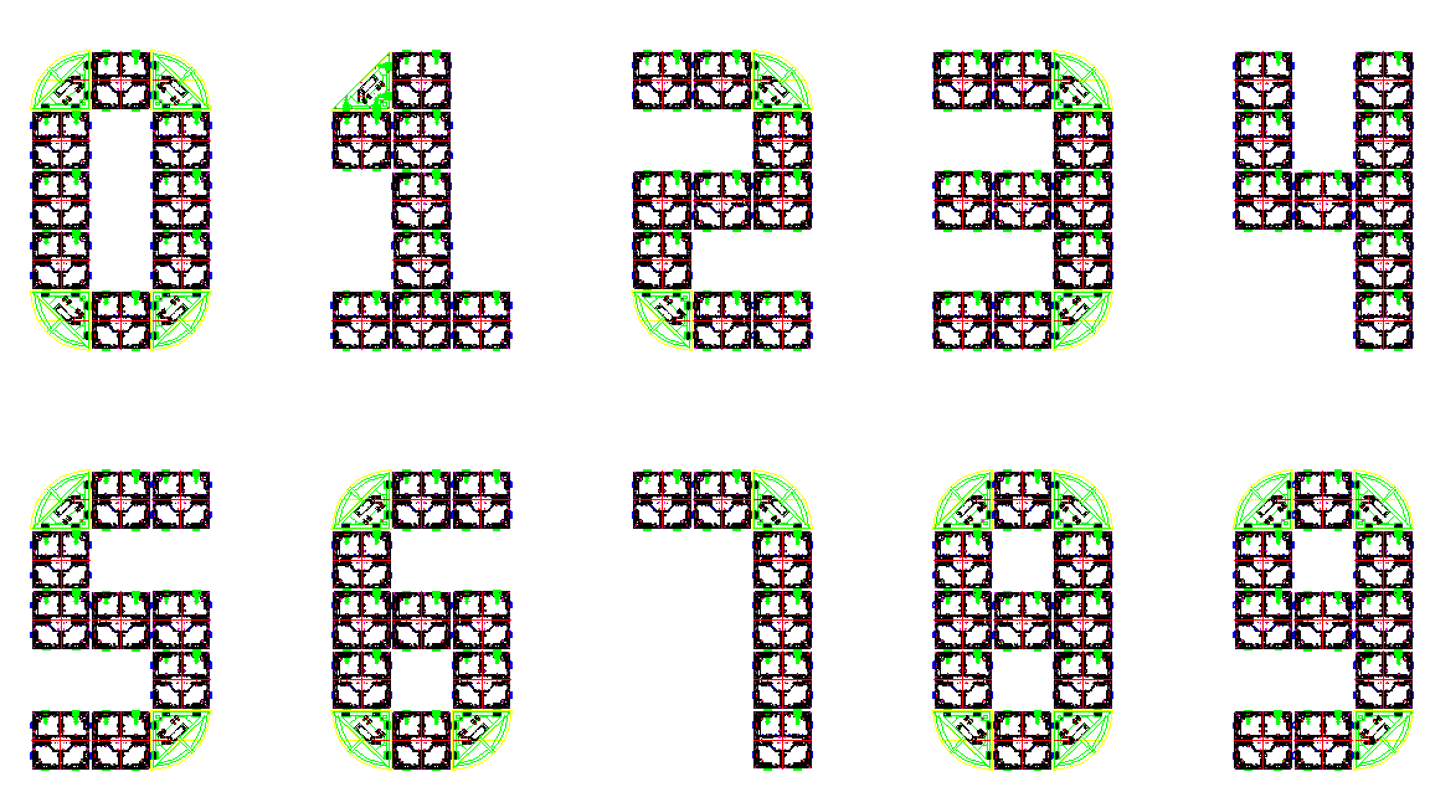

  • Numbers
    View More

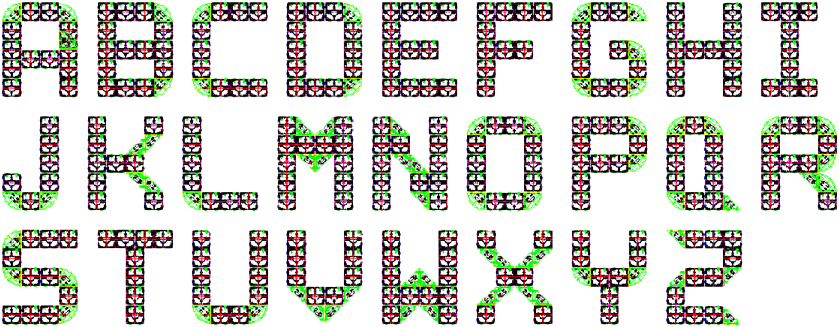

  • Letters
    View More

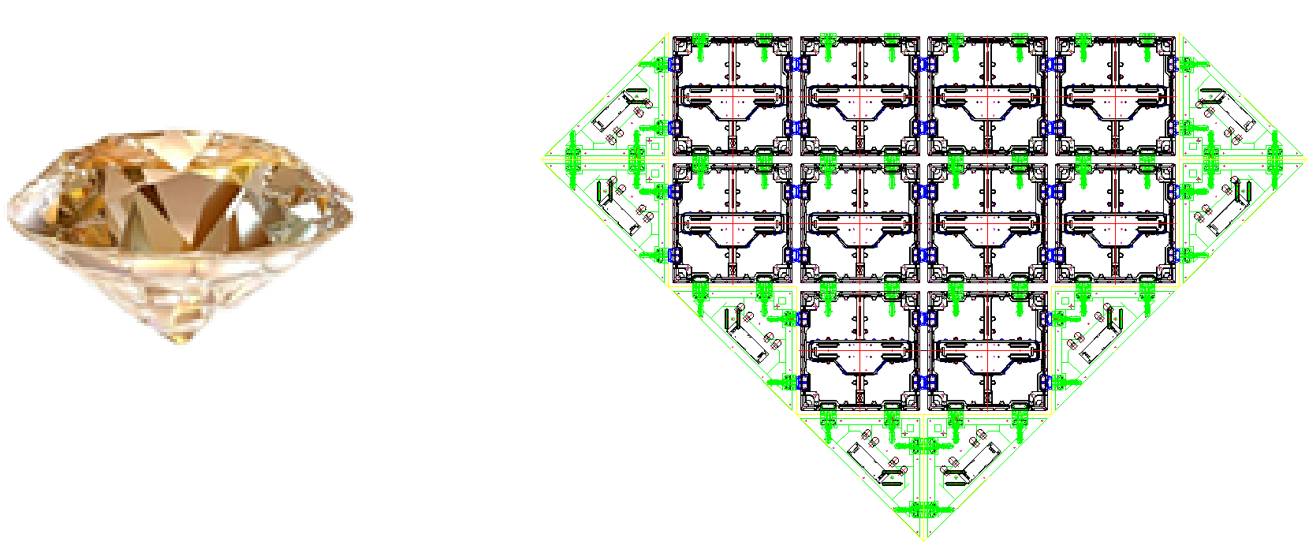

  • Diamond
    View More

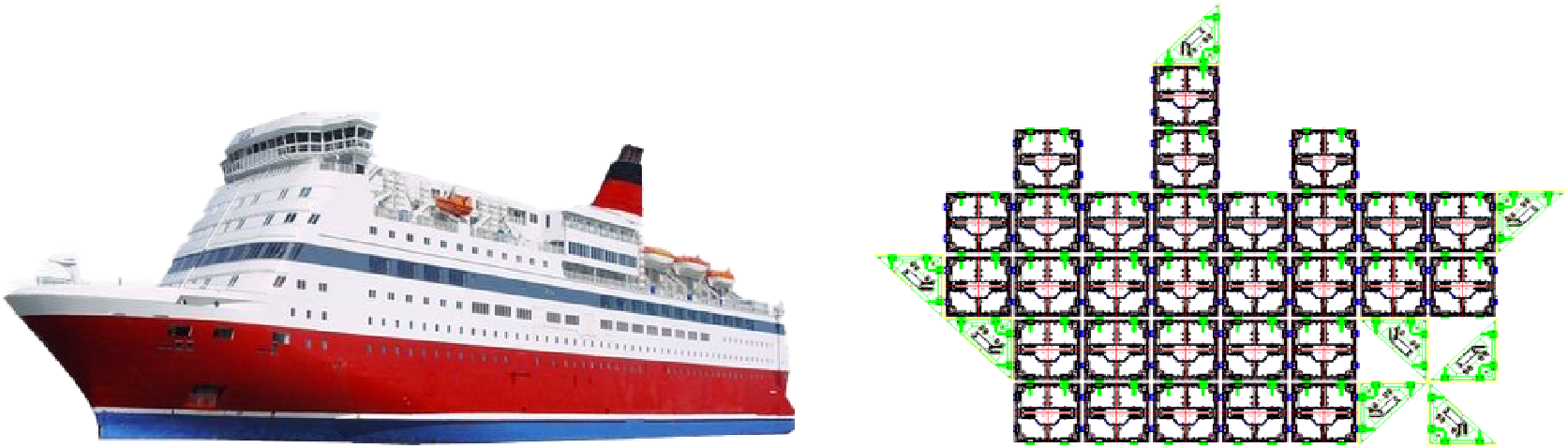

  • Boat
    View More

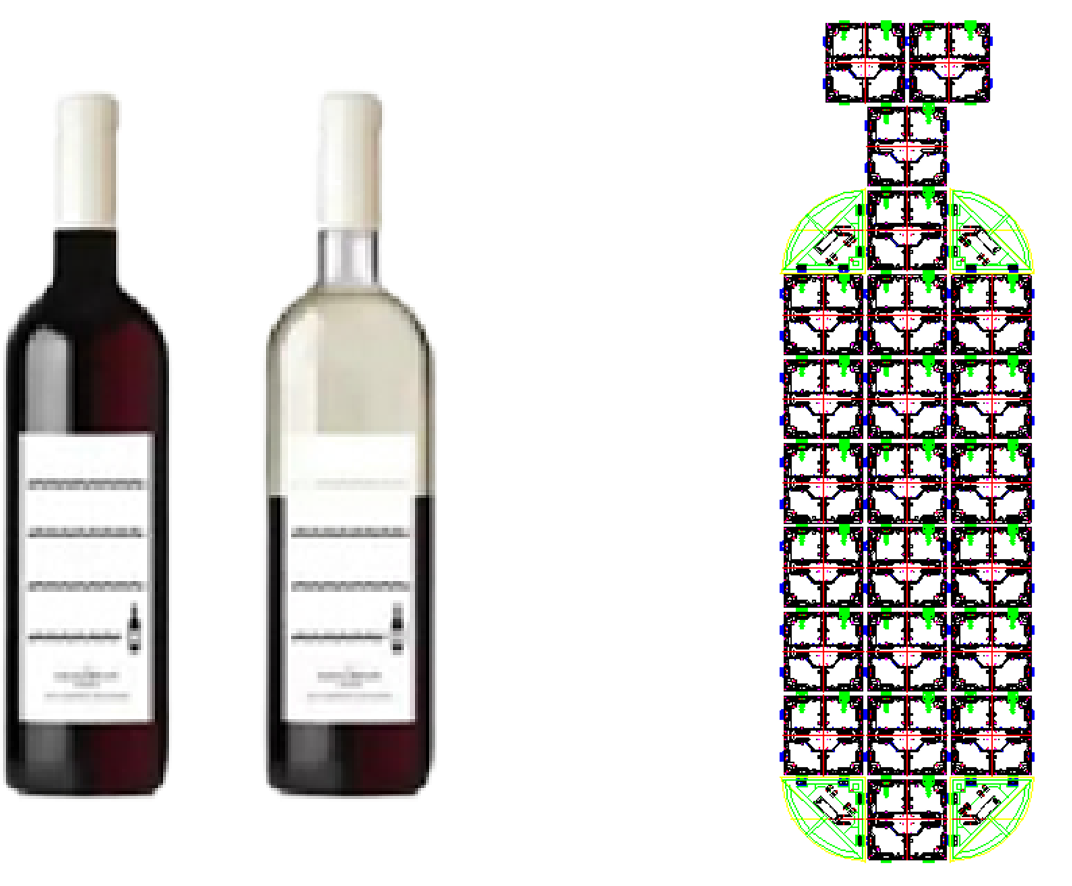

  • Bottles
    View More

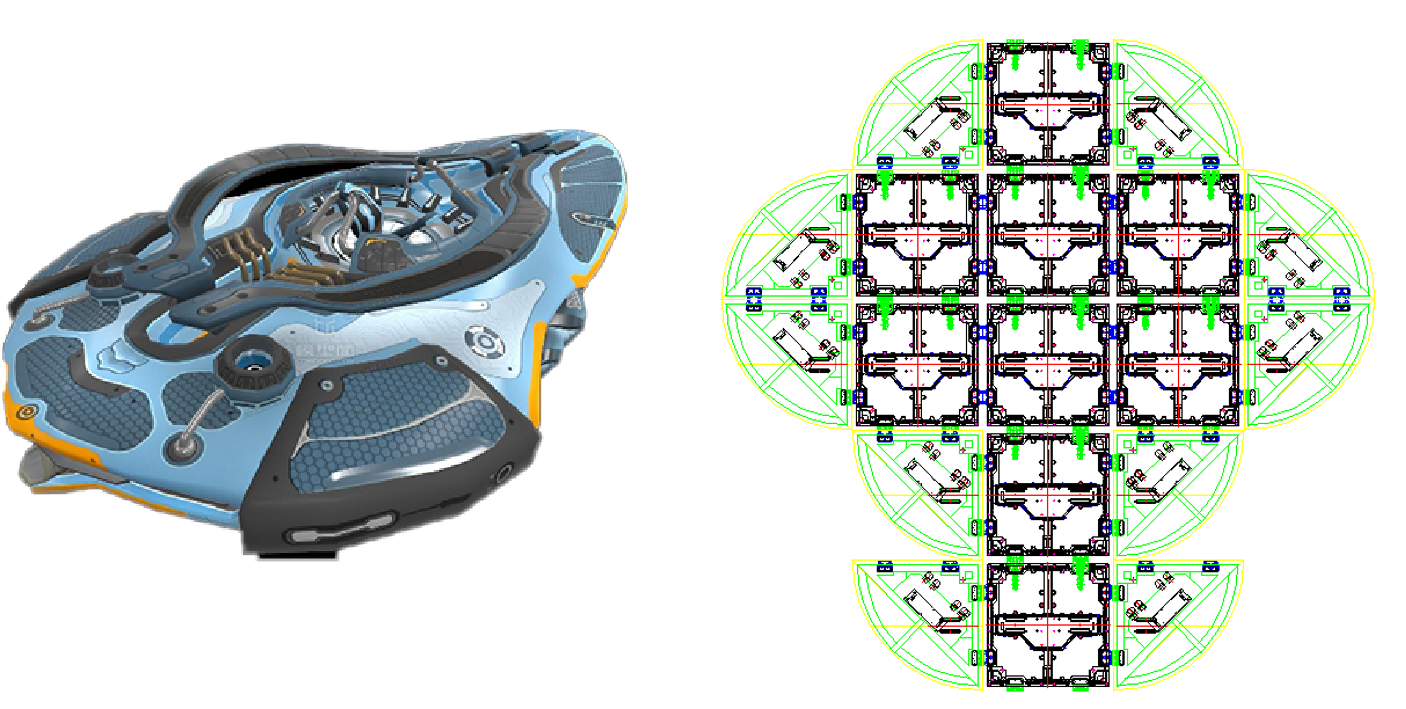

  • Spaceship
    View More

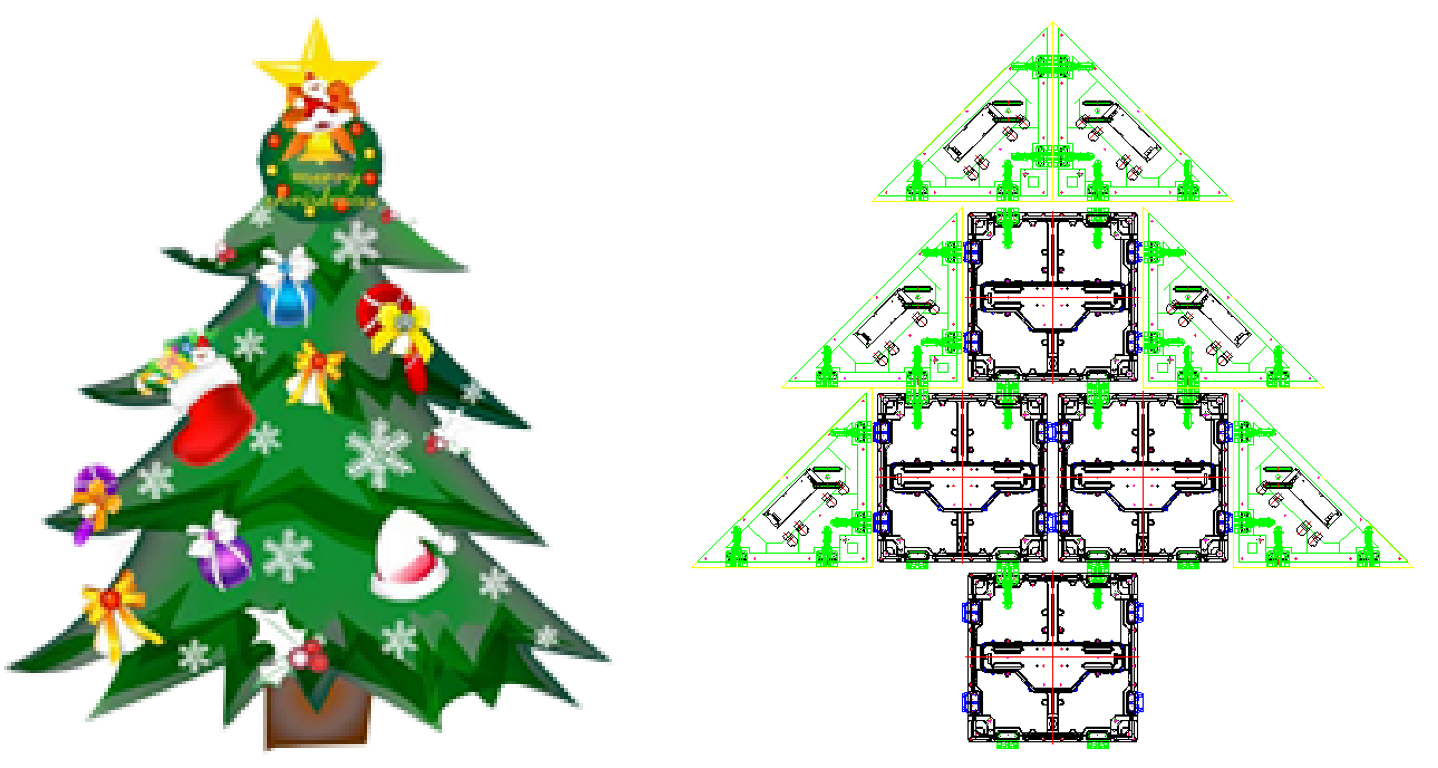

  • Christmas Trees
    View More
  • Space-time Tunnel
    View More
  • Angel wings
    View More
Product Case
2021 Australia 280sqm P2.9+P3.9 Virtual Studio
01 / 01
Specifications
TF-231 TF-261 TF-291 TF-391TF-290 TF-390 TF-480
  • Tile
  • LED Type
  • Application
  • Pixel Pitch（mm）
  • Module Resolution（W×H）
  • Size（mm）
  • Resolution（W×H）
  • Pixel Density（Dots/m²）
  • Material
  • Weight（kg)
  • Brightness
  • Viewing Angle (H/V)
  • Contrast Ratio
  • Power Consumption(Max.W/㎡)
  • Power Consumption (Average.W/㎡)
  • Scan Mode
  • Refresh Rate（Hz)
  • Gray Scale
  • Working Temperature
  • Working Humidity
  • Maintenance Method
  • IP Grade
  • TF-231
  • SMD1415
  • Indoor
  • 2.381
  • 105*105
  • 500*500
  • 210*210
  • 176400
  • Die cast aluminum
  • 7
  • ≥800
  • 140°/140°
  • 5000:1
  • 510
  • 170
  • 1/21S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP40/IP21
  • TF-261
  • SMD1415
  • Indoor
  • 2.604
  • 96*96
  • 500*500
  • 192*192
  • 147456
  • Die cast aluminum
  • 7
  • ≥800
  • 140°/140°
  • 5000:1
  • 520
  • 173
  • 1/24S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP40/IP21
  • TF-291
  • SMD2020
  • Indoor
  • 2.976
  • 84*84
  • 500*500
  • 168*168
  • 112896
  • Die cast aluminum
  • 7
  • ≥800
  • 140°/140°
  • 5000:1
  • 530
  • 176
  • 1/21S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP40/IP21
  • TF-391
  • SMD2020
  • Indoor
  • 3.906
  • 64*128
  • 500*500/500*1000
  • 128*128/128*256
  • 65536
  • Die cast aluminum
  • 7/10
  • ≥800
  • 140°/140°
  • 5000:1
  • 530
  • 176
  • 1/16S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP40/IP21
  • TF-290
  • SMD1415
  • Outdoor
  • 2.976
  • 84*168
  • 500*500/500*1000
  • 168*168/168*336
  • 112896
  • Die cast aluminum
  • 7.5/11.5
  • ≥4500
  • 140°/140°
  • 4000:1
  • 800
  • 267
  • 1/17S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP65/IP54
  • TF-390
  • SMD1820
  • Outdoor
  • 3.906
  • 64*128
  • 500*500/500*1000
  • 128*128/128*256
  • 65536
  • Die cast aluminum
  • 7.5/11.5
  • ≥4500
  • 140°/140°
  • 4000:1
  • 800
  • 267
  • 1/16S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP65/IP54
  • TF-480
  • SMD1820
  • Outdoor
  • 4.8
  • 52*104
  • 500*500/500*1000
  • 104*104/104*208
  • 43264
  • Die cast aluminum
  • 7.5/11.5
  • ≥4500
  • 140°/140°
  • 4000:1
  • 800
  • 267
  • 1/13S
  • ≥3840
  • 14
  • -10℃~+40℃
  • 10%-90%RH
  • Front and Rear
  • IP65/IP54

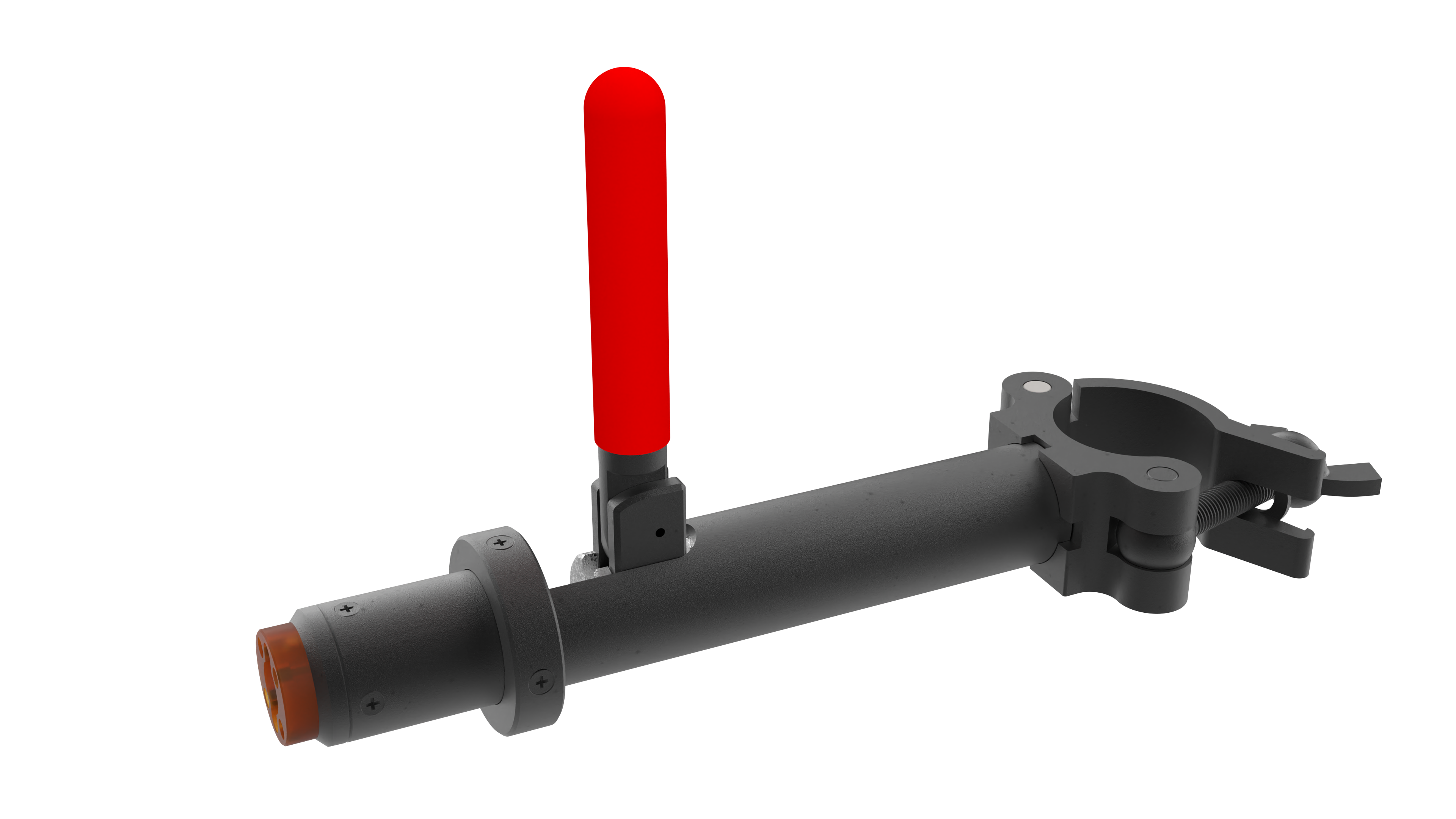

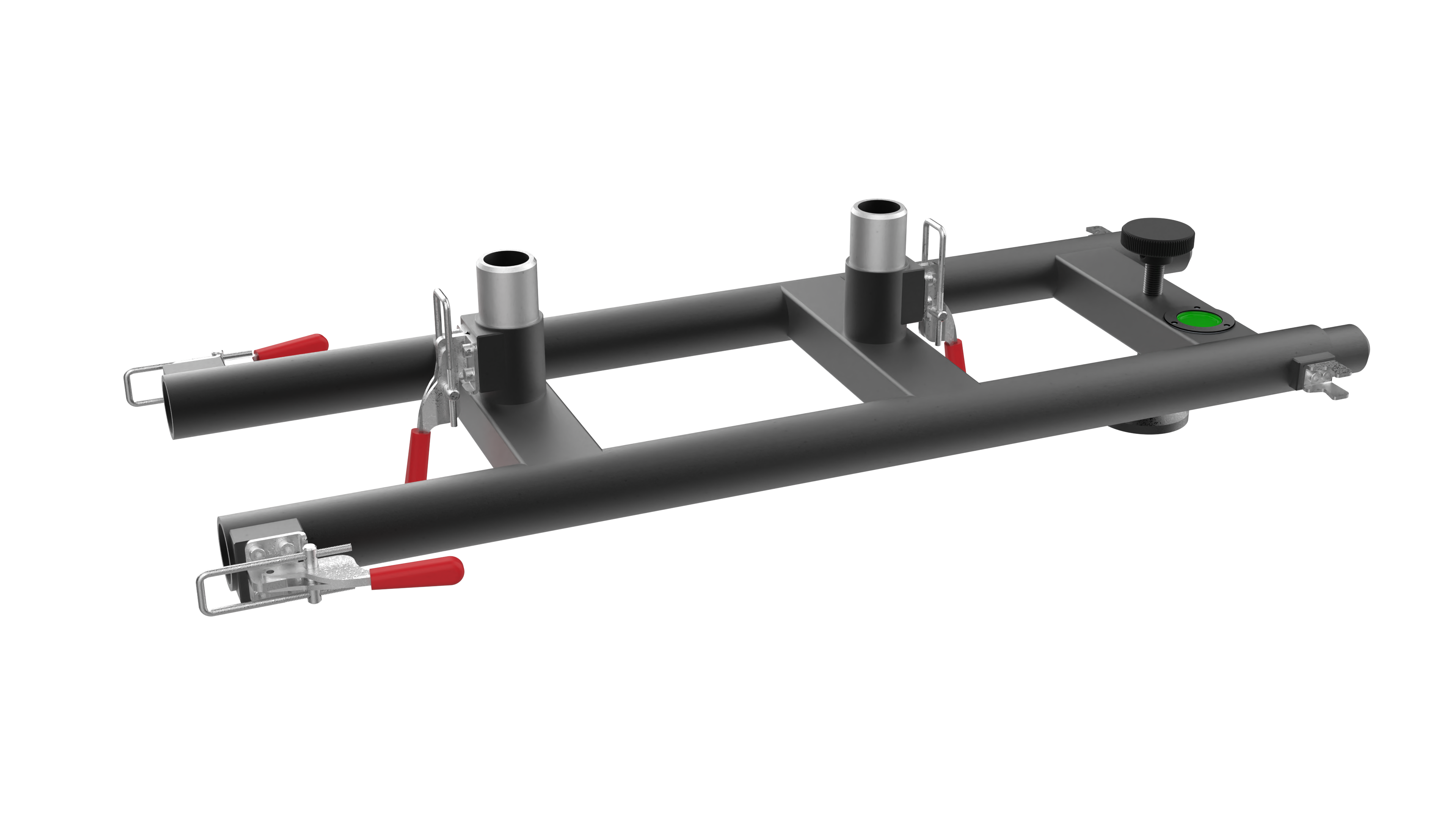

Accessories

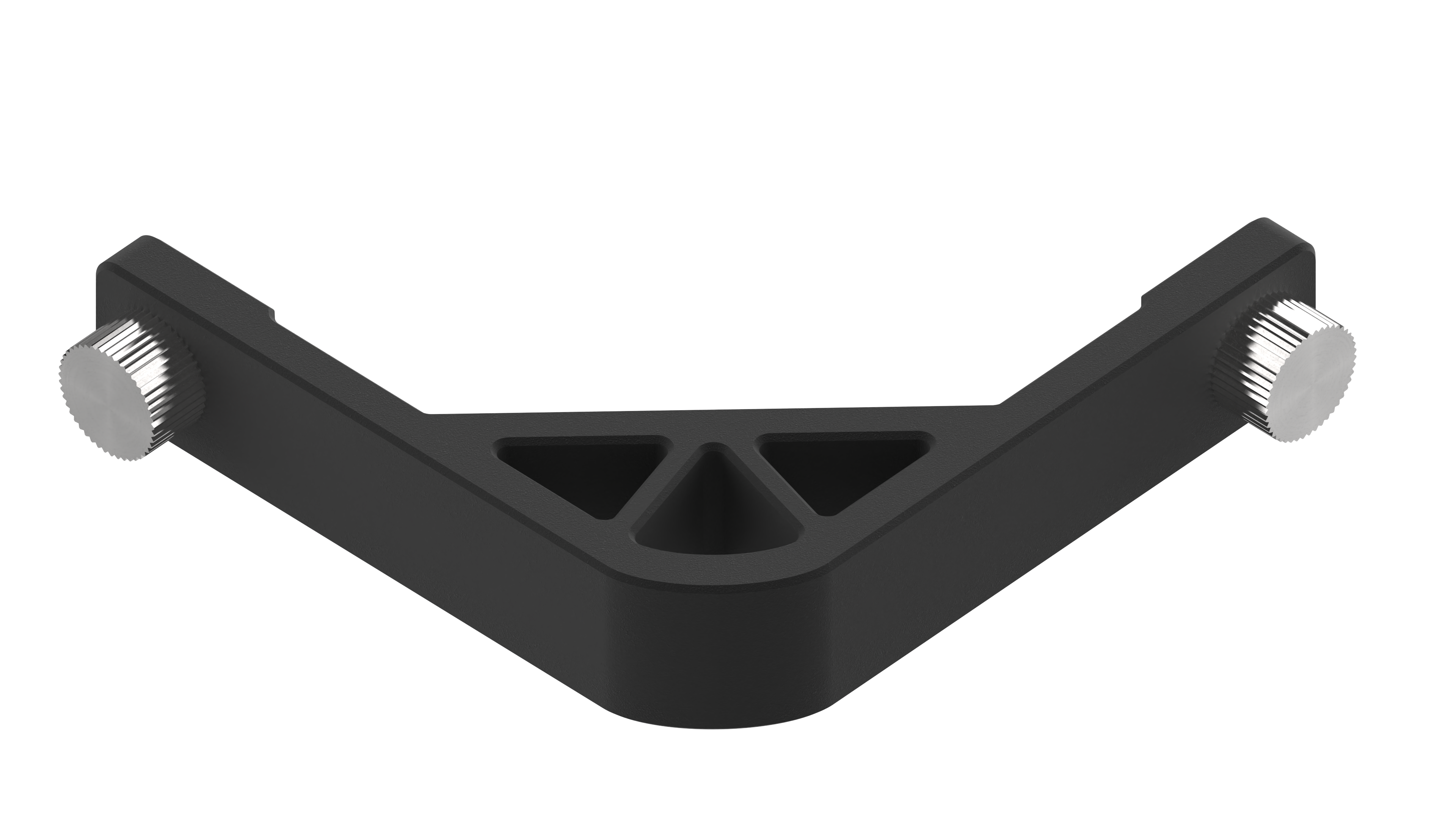

Inner right angle lock
Outer right angle lock

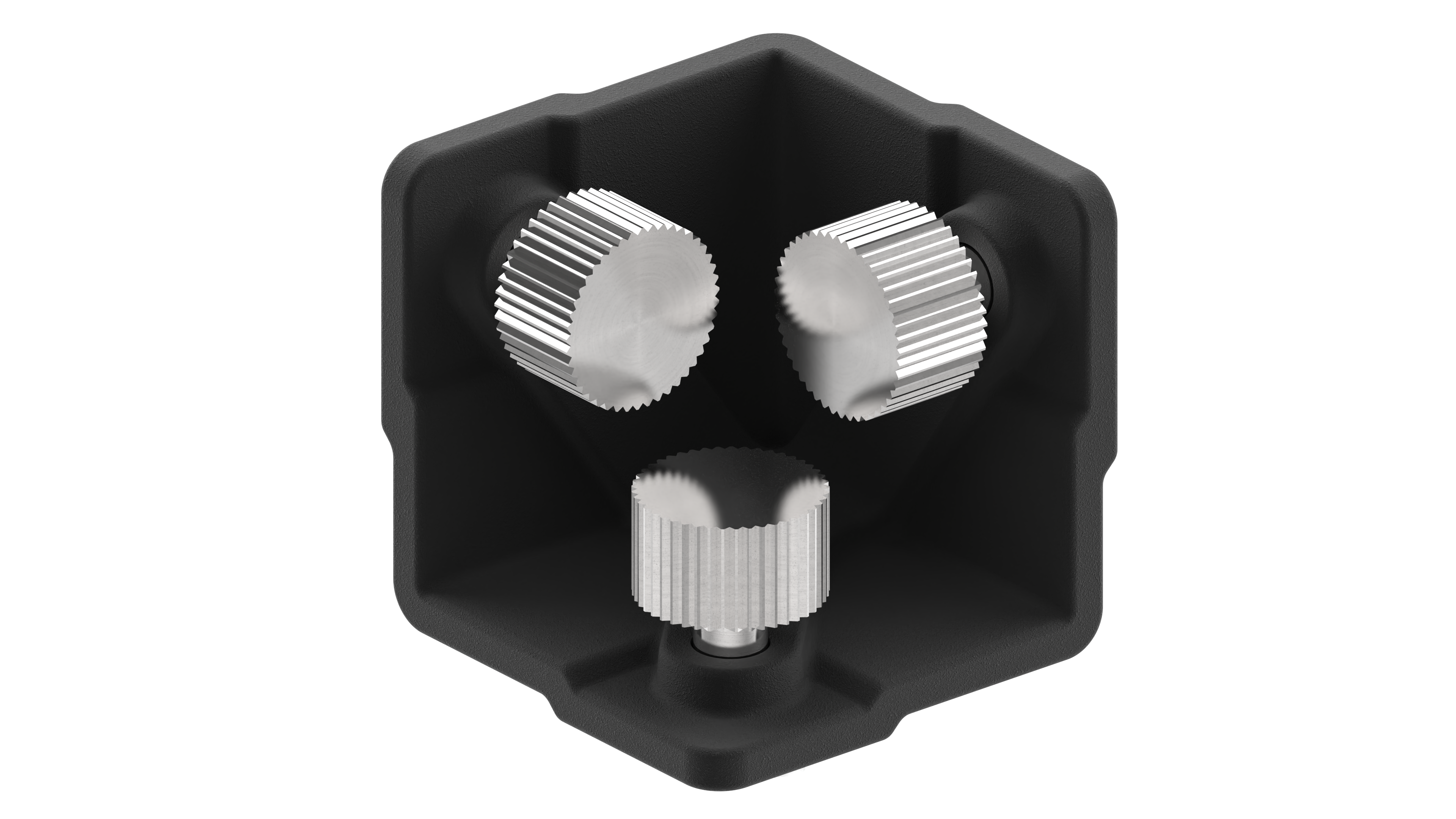

Triple sides lock

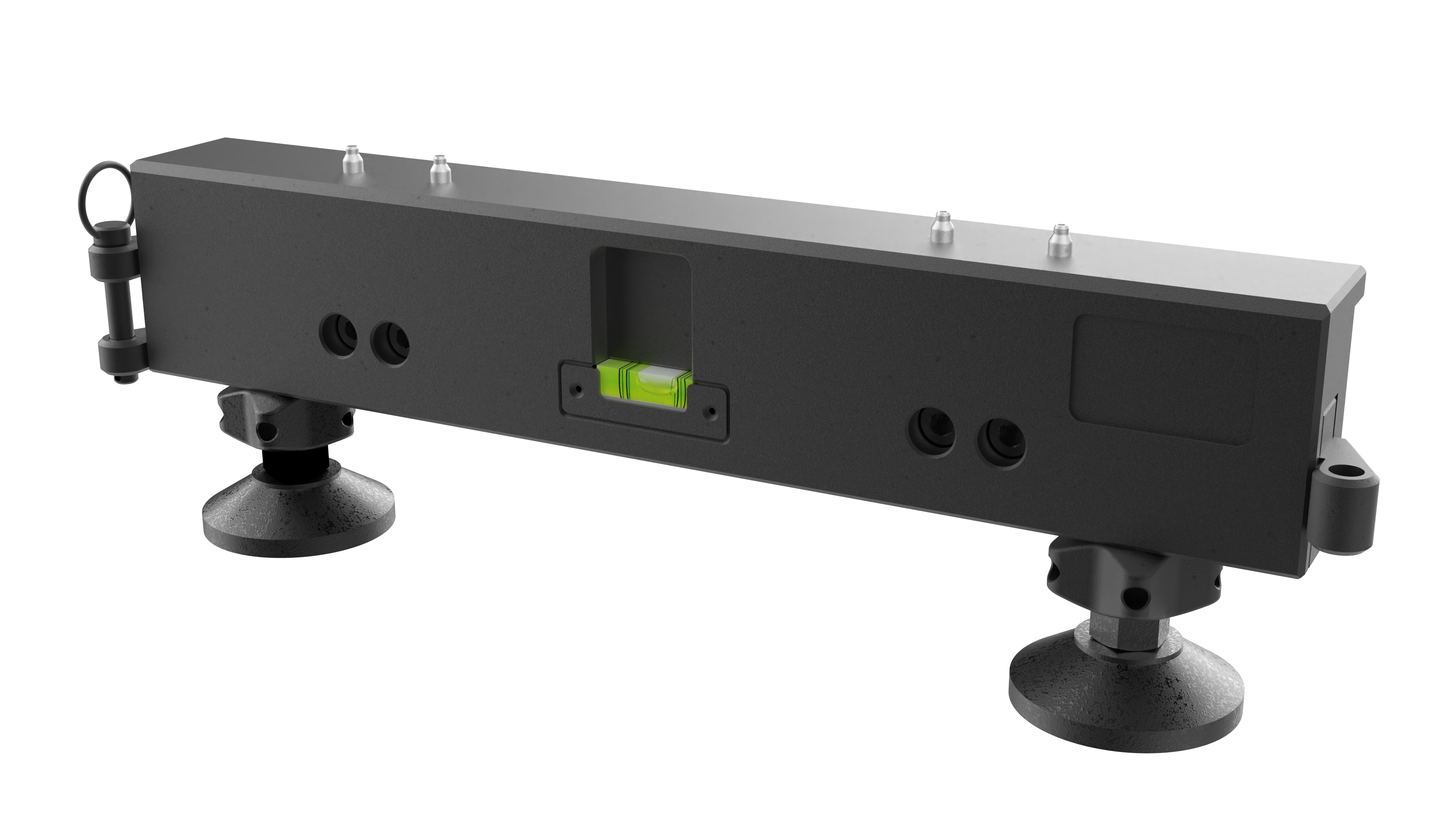

Ground bar

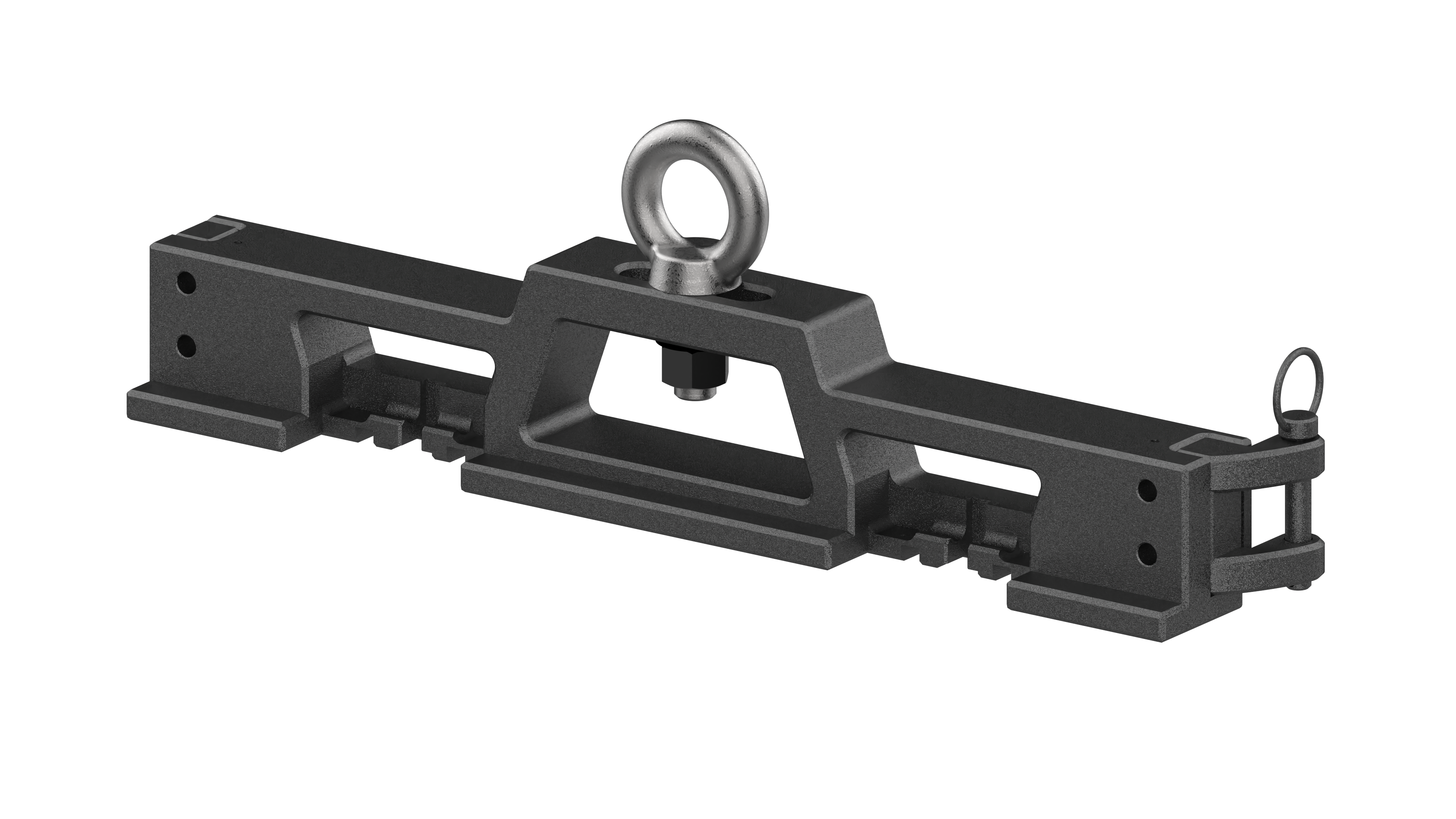

Hanging bar

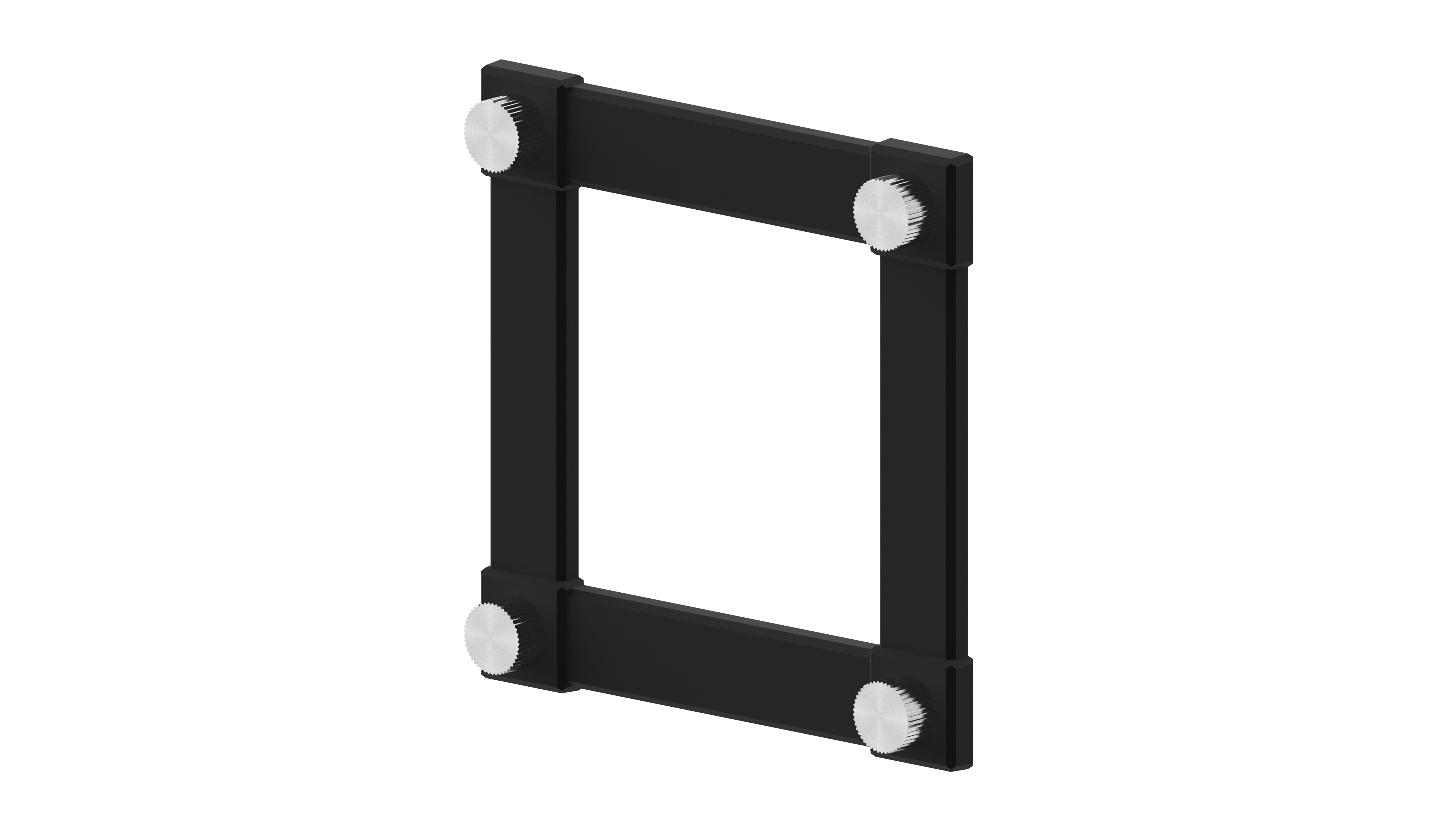

Connection plate

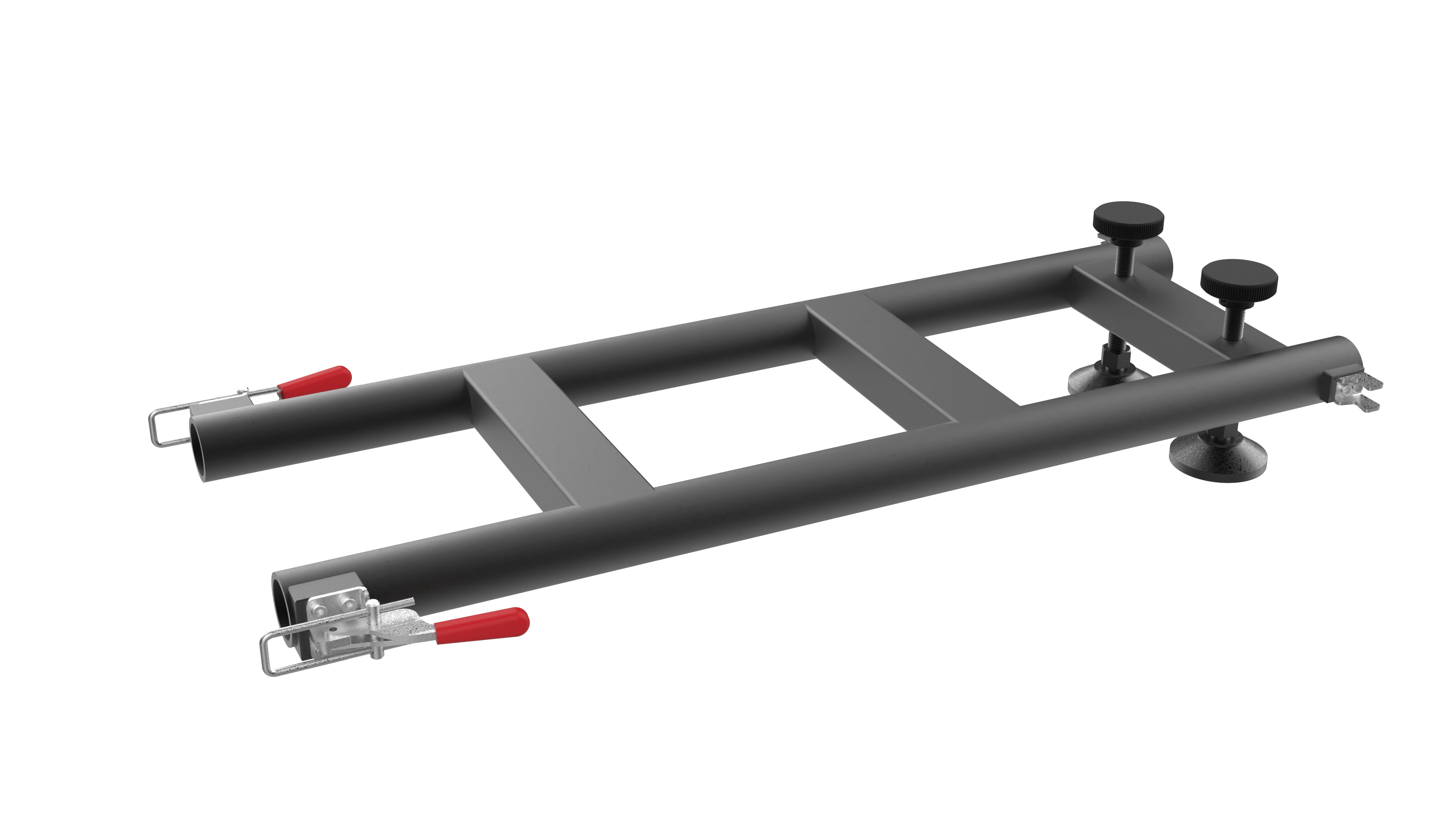

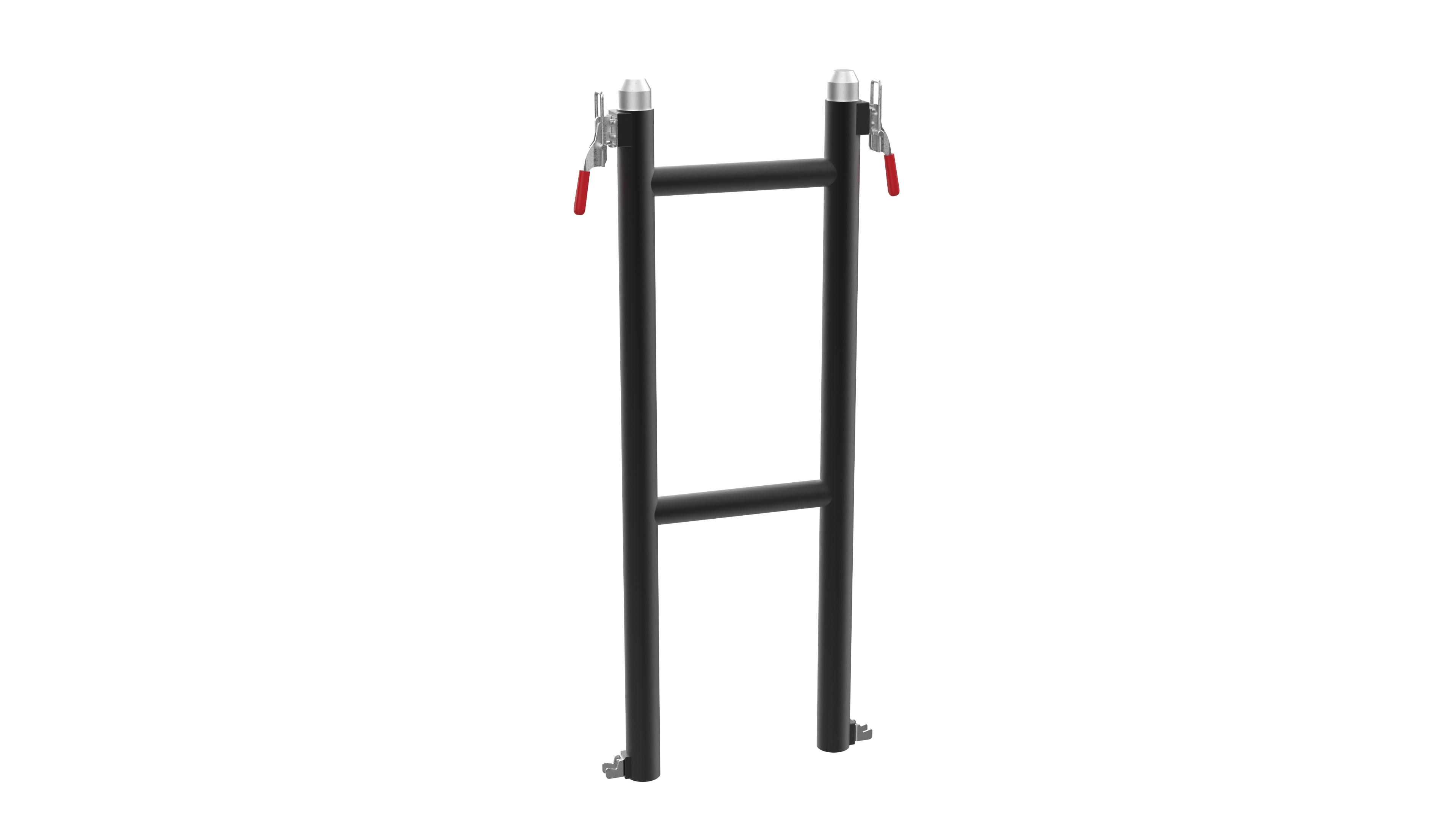

Ground frame
Ground extended frame
Back frame
Connection bar

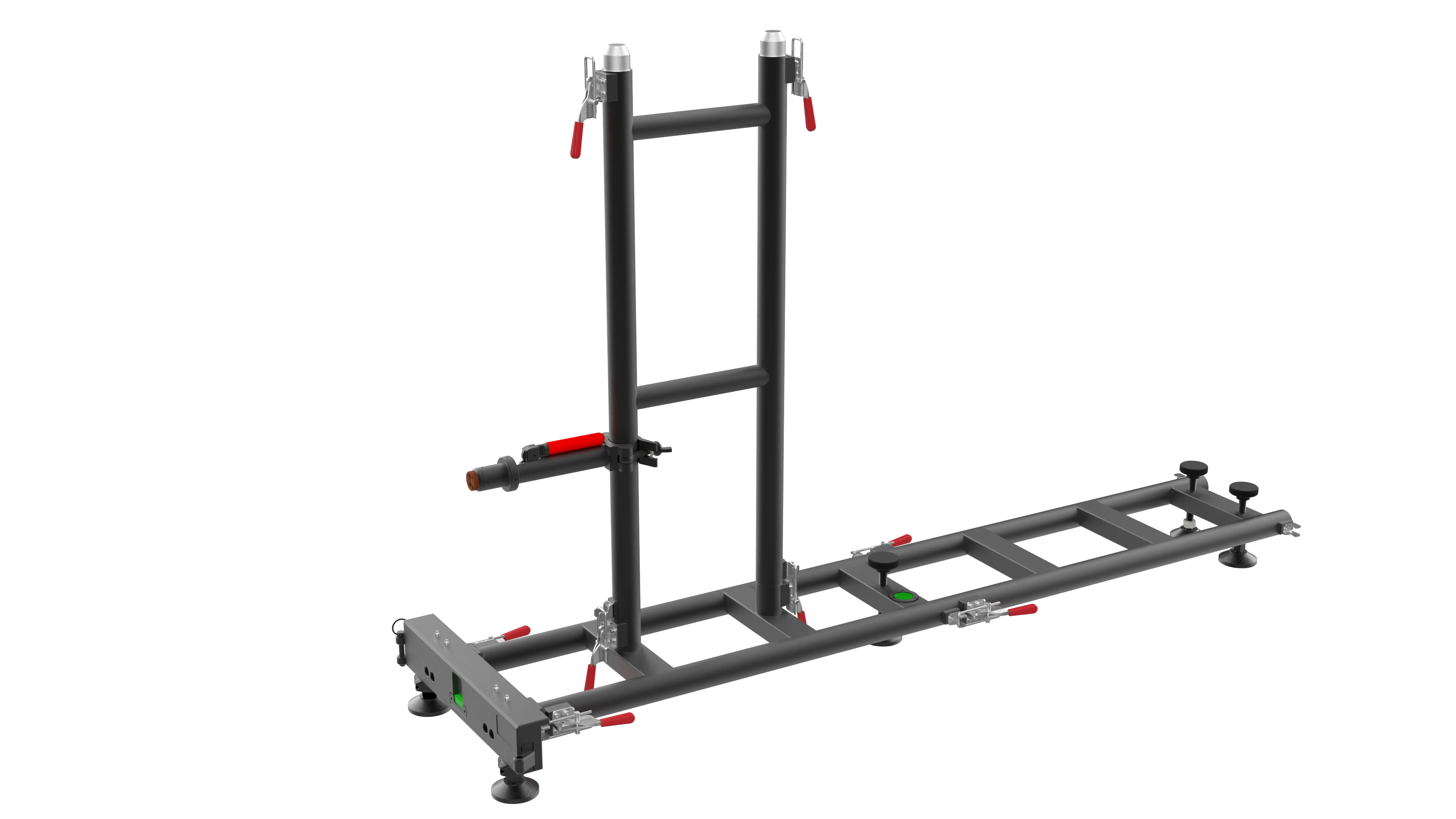

Stacking system

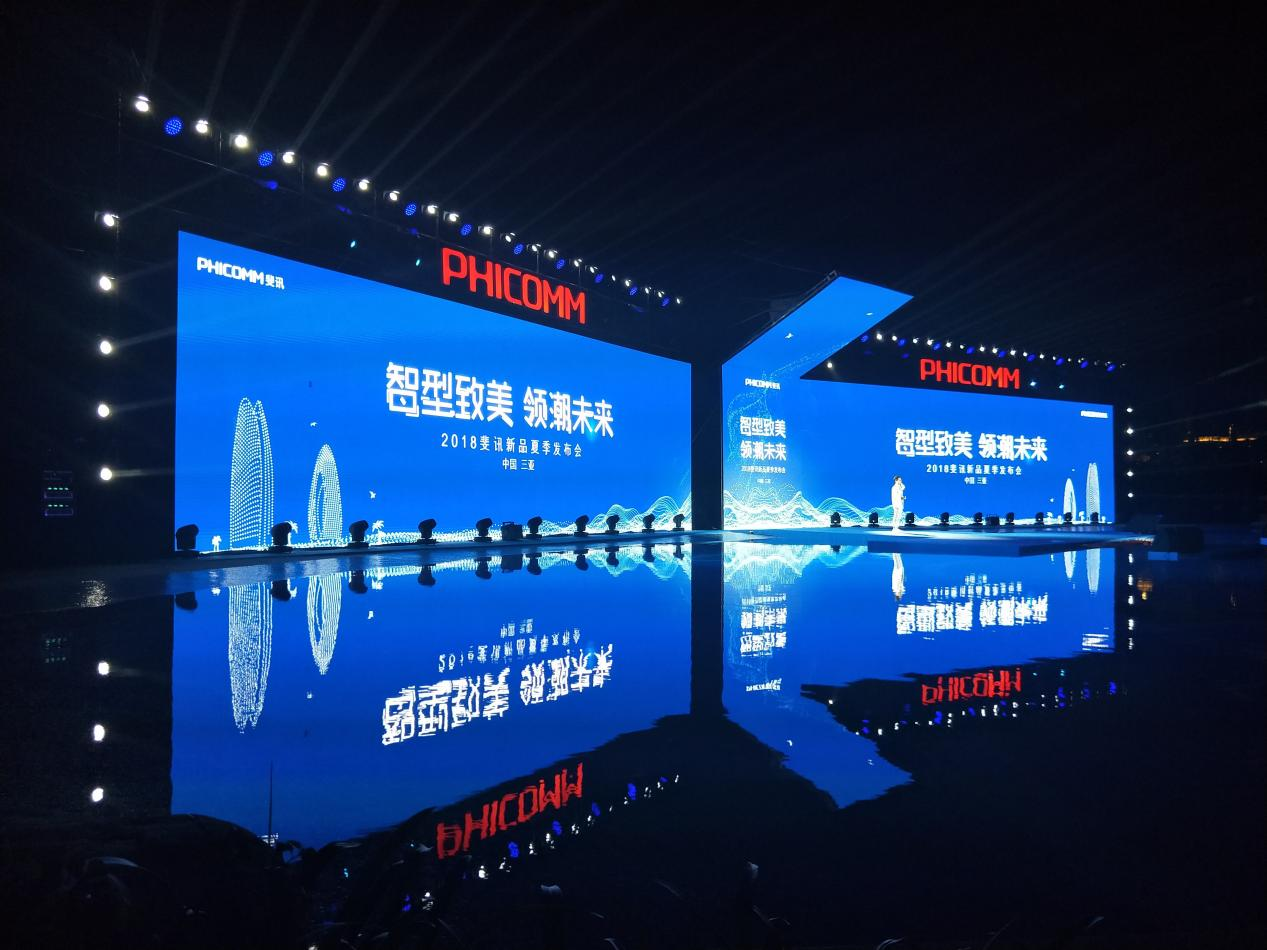

Application Fields

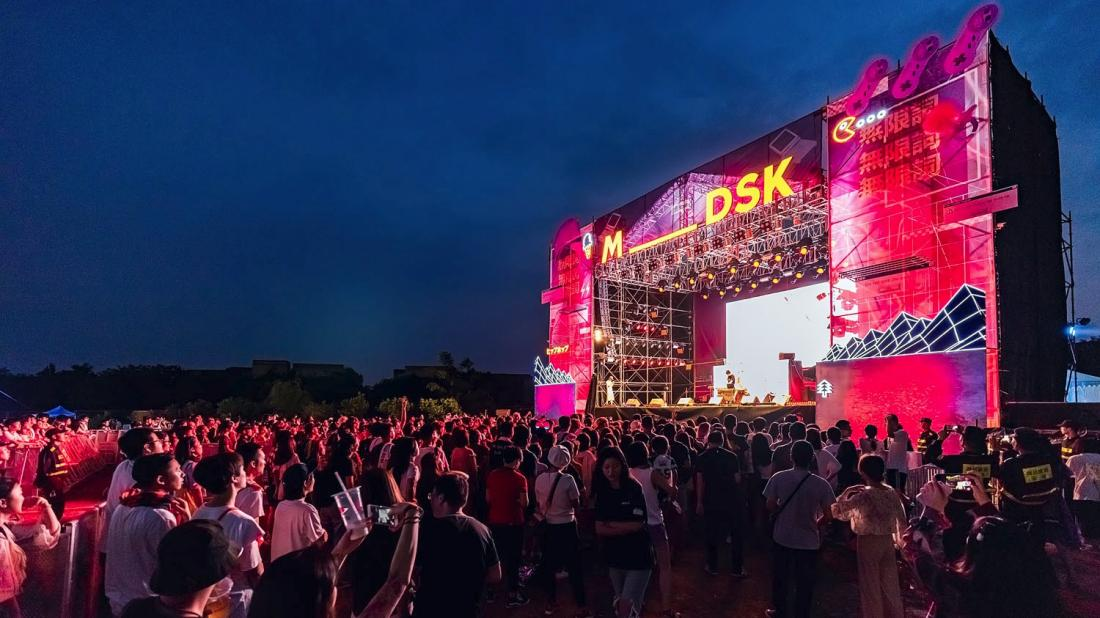

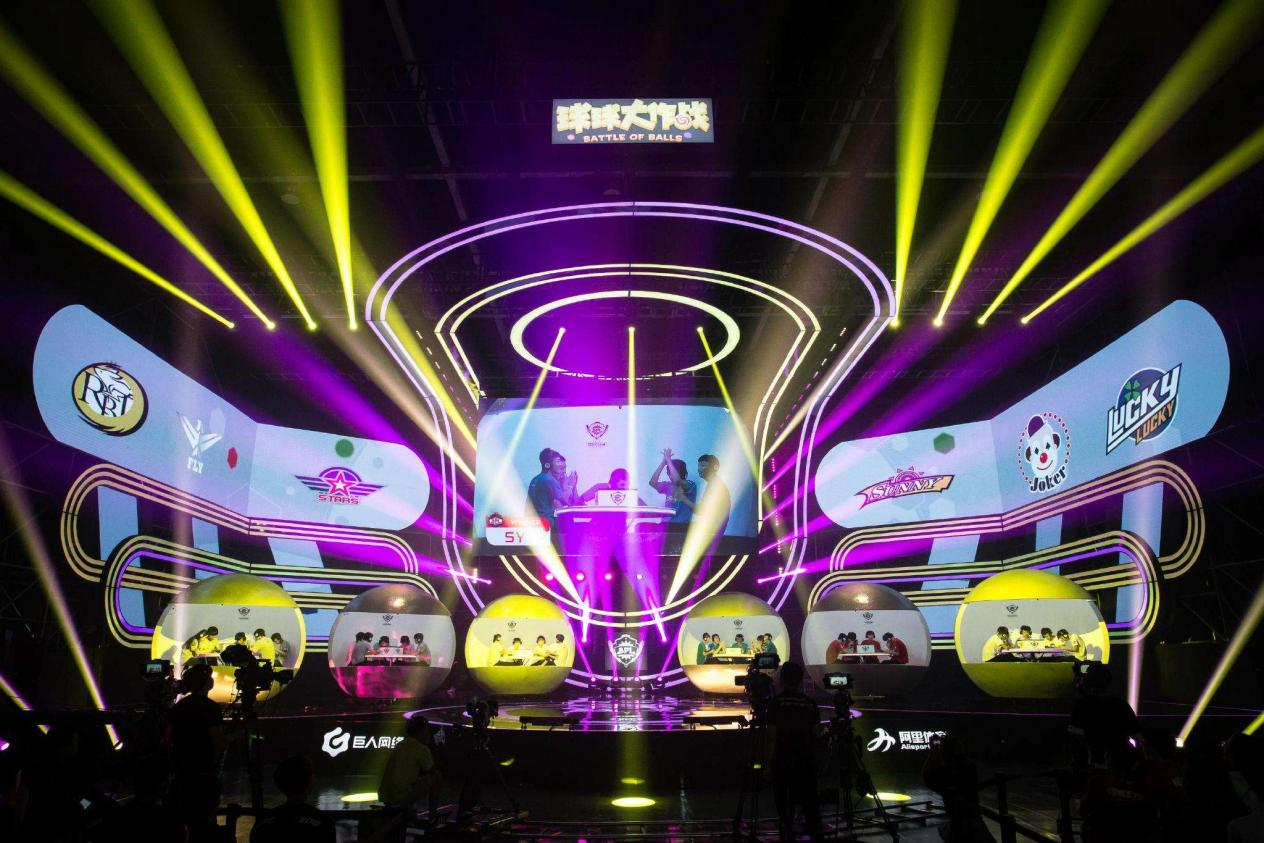

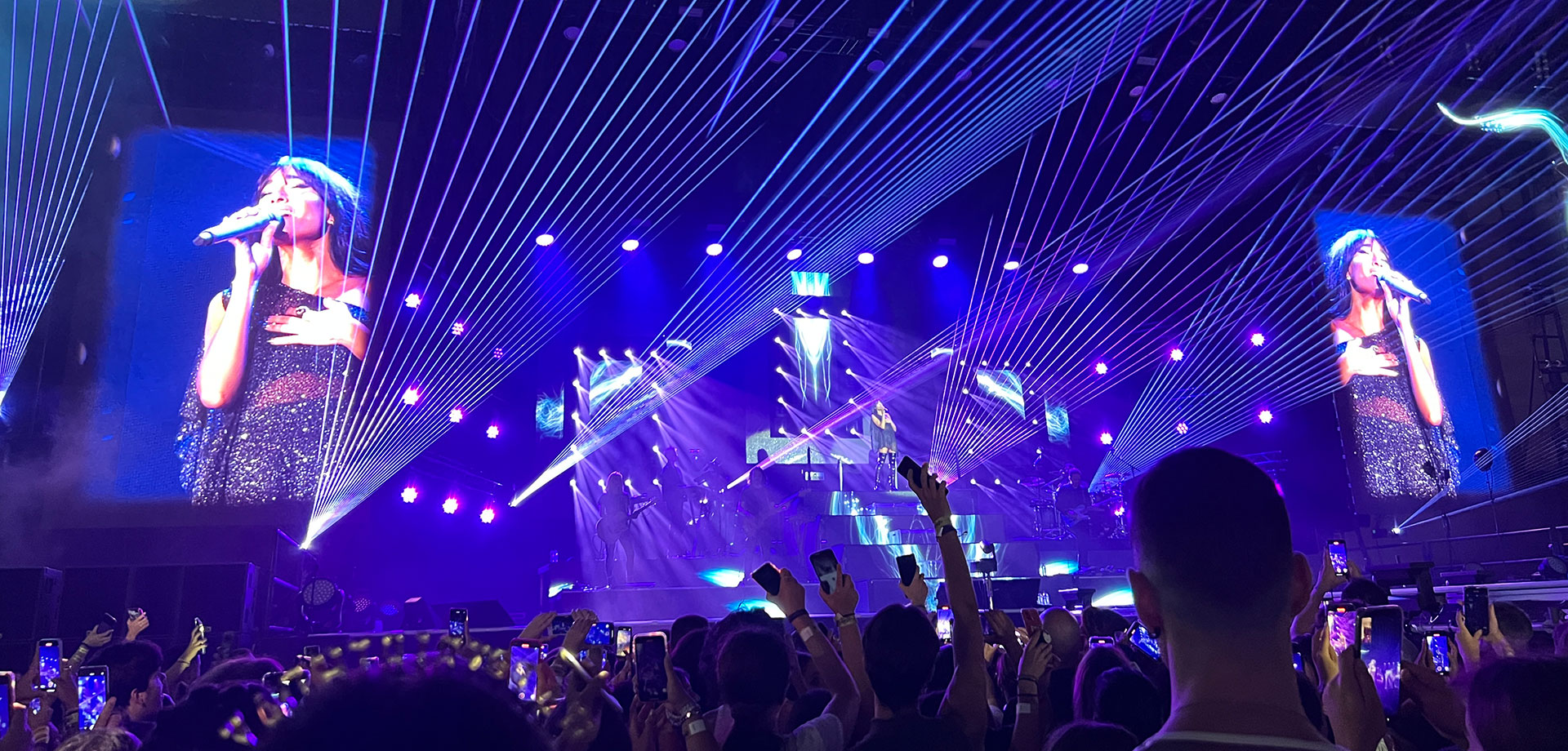

Music Festival Scene Auto Show Conference Site E-sports Scene
